Supplement: "The Stars in Their Courses":
Celestial Motions Revisited

Key Ideas:

Apparent Motions

Simple Motions Compound Motions Complex Motions

Celestial Motions Revisited

We will review the wide range of apparent motions that we have been discussing the last week or so, with the goal of understanding what these motions are from a modern perspective.

Having seen all the motions individually, and with some detail, let's revisit them in general to cement the basic principles.

Apparent Motions

How an object appears to move through the sky is a consequence of

  1. How the object is actually moving through space ("true motion")
  2. How your vantage point is also moving through space.
The combination pf motions results in the object's apparent motion.

An Earth-Centered Perspective

For most naked-eye astronomical observations of interest to us here, our vantage point is the Earth, which has two basic true motions:

  1. Daily Rotation about its axis (24 hours/day)
  2. Annual Orbit around the Sun (approximately 365.25 days/year)
These two motions, combined with the actual motions of the objects we are viewing, gives rise to their apparent motions across the sky.

Simple Motions

The simplest apparent motions are those due to one of the motions of the Earth, either its rotational or orbital motion.

Apparent Daily Motions

Apparent Daily Motions reflect the rotation of the Earth about its axis.

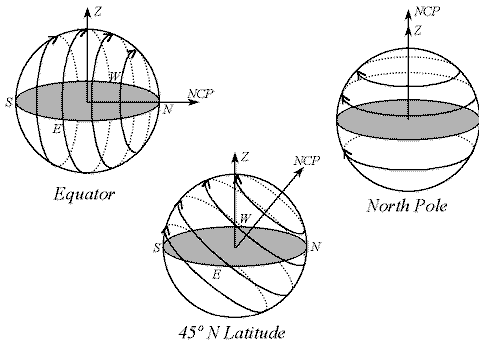

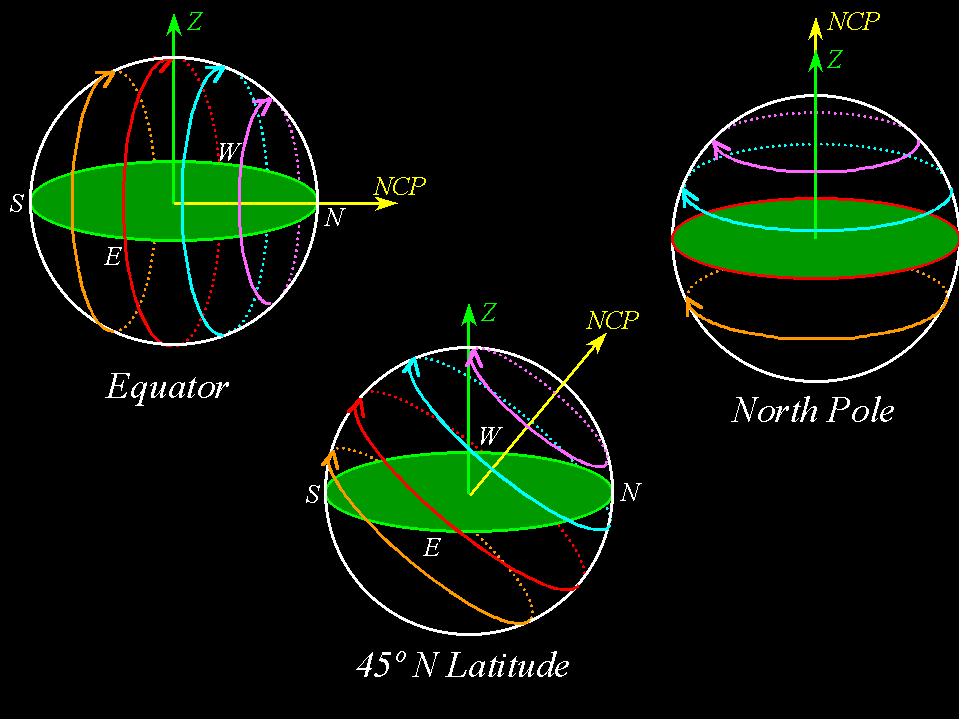

A good illustration is the apparent daily motions of the stars:

(Click on the image to view it in color at full resolution [Size: 21Kb])

In Columbus: we are at 40° N, so the paths are tilted by (90°-40°)=50° from our local horizon.

This motion defines the "sidereal day" - the day measured with respect to the stars.

Apparent Annual Motions

Apparent Annual Motions reflect the orbit of the Earth around the Sun.

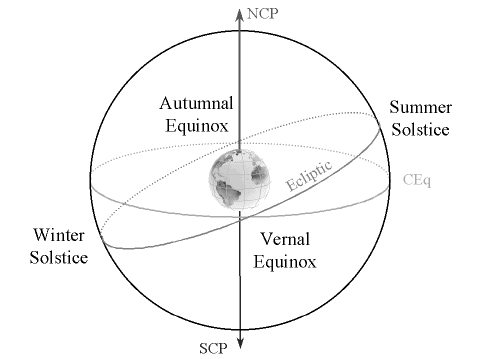

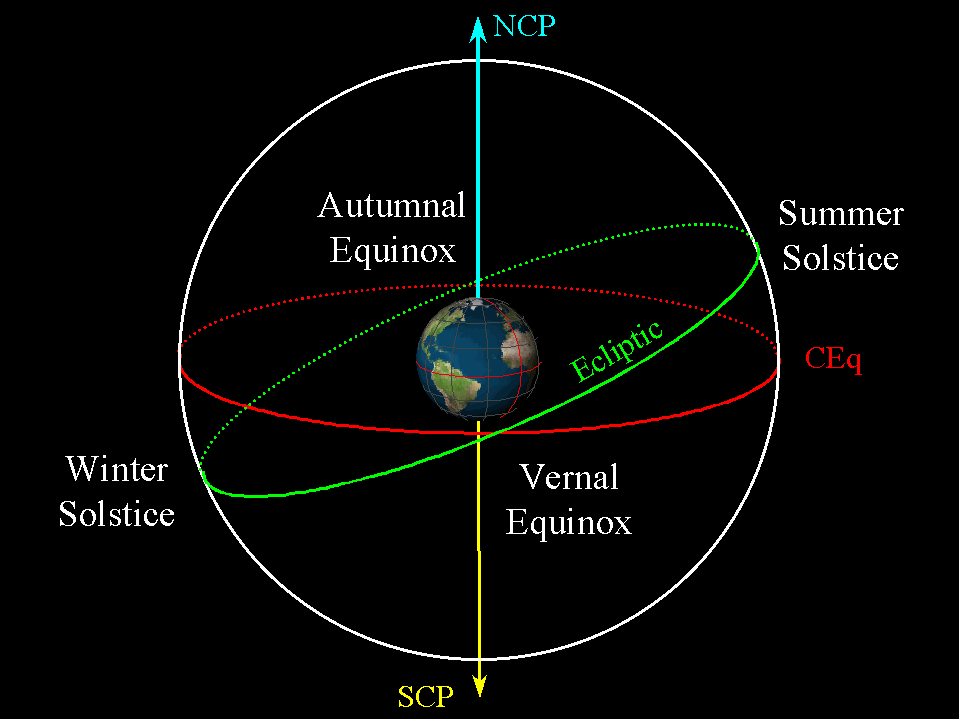

A good illustration is the apparent annual motion of the Sun:

(Click on the image to view it in color at full resolution [Size: 22Kb])

This motion defines our "Calendar Year" with respect to the seasons.

Compound Motions

Compound motions, in their simplest form, combine two motions together to make one apparent motion.

The Solar Day

A good example of a this is the "Solar Day", which combines two motions:

Starting with the Sun on your meridian (Local Noon),
  1. After one rotation with respect to the stars, the Sun is now located a little bit to the east of your meridian.

  2. 4 minutes later (precisely: 3m 56s), the moves the remaining distance to your meridian, and it is Local Noon again

(Click on the image to view at full scale [Size: 9Kb])
This leads to two different ways of measuring the "day":
  1. The Sidereal Day of 23h 56m 04s which measures the rotation of the Earth relative to the Stars.

  2. The Solar Day of 24h which measures the rotation of the Earth relative to the Sun.
The first is used primarily by astronomers (since we often point telescopes by the stars), whereas the second is the basis of our civil timekeeping system.

The Lunar Month

Another example of compound motions is the Lunar Month, which combines these two motions:

  1. The orbit of the Moon around the Earth, which appears as an eastward motion relative to the stars. This takes about 27.3 days to complete one orbit with respect to the stars (the sidereal month).

  2. The orbit of the Earth around the Sun, which causes the location of the Sun to slowly move eastward along the Ecliptic.
Starting with New Moon (see Lecture 8):
  1. After one lunar orbit (1 sidereal month of 27.3 days), the Moon now appears west of the Sun in the sky, and is in its Waning Crescent phase.

  2. About 2.3 days later, the combined motion of the Moon and Earth moves it east enough that it is once again New Moon.

(Click on the image to view at full scale [Size: 9Kb])
The combined motion gives the Lunar Month of 29.5 days (also called the Synodic Month).

Sidereal vs. Synodic Periods

The time it takes any cyclic (repeating) phenomenon (e.g., rotation or orbit) to complete one full cycle is called its Period

Sidereal Period

  1. The Sidereal Day (one Earth rotation relative to the stars)
  2. The Sidereal Month (one Moon orbit around the Earth relative to the stars)
  3. The Sidereal Year (one Earth orbit around the Sun relative to the stars).
The word Sidereal comes from the Latin sidus, meaning "a star".

Sidereal periods are related to "simple" motions as described above.

Synodic Period

  1. The Solar Day (one Earth rotation relative to the Sun - technically we could call this a "Synodic Day", but that's confusing).

  2. The Synodic Month (one Moon orbit around the Earth relative to the Sun, or the interval between successive New Moons)

  3. The Synodic Period of a Planet. Time between successive Oppositions of a Superior Planet, or successive Inferior Conjuctions of an Inferior Planet.
The word Synodic comes from the Greek synodos, meaning "a meeting" or "coming together" (e.g., a "Church Synod").

A Synodic Period measures how long it takes a 2-part compound motion to occur, as it depends on two things "coming together":

Here's a problem to think about for yourself:

What is the Synodic Period of a mechanical clock (i.e., how often do the hands come together, for example as at noon or midnight)?

Complex Motions

The final kind of motion we have encountered can be described as "complex" motions.

The Eclipse Year

Eclipses of the Sun or Moon occur only when the Earth, Sun, and Moon are exactly aligned in the sky.

Because the Moon's orbit is tilted with respect to the Ecliptic (by about 5 degrees), so there are only two possible points of alignment, along the "Line of Nodes".

You only get eclipses when both of these things happen:

This requires 3 motions to combine (orbit of the Moon, orbit of the Earth, and the alignment of the line of nodes).

This fact makes eclipses fairly rare as seen from any given place on the Earth, though 2 or more total eclipses occur every year.

Retrograde Motions of Planets

Seen from the perspective of the Sun, the planets all orbit the Sun at different speeds relative to the fixed stars:

Seen from the Earth, however, the apparent motions are complicated by the different speeds:

Superior Planets (Mars, Jupiter, Saturn, etc.):

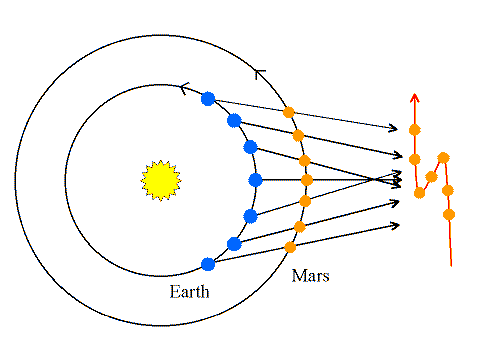

Retrograde Motion of Mars:

(Click on the image to view at full scale [Size: 11Kb])

Inferior Planets (Mercury & Venus):

An additional complication is that the planes of the orbits are not all aligned with the ecliptic. When seen at different parts of the orbits, the retrograde paths can be closed loops or S-shaped curves, depending on how they are projected onto our Sky.

This complex motion was very difficult to explain when viewed from the ancient (and arguably "common-sense") perspective of a fixed, unmoving Earth.
