An Introduction to Solar System Astronomy
Prof. Richard Pogge, MTWThF 2:30
Lecture 20: Tides
Tides are caused by differences in the gravitational pulls of the Moon
and Sun between near and far sides of the Earth.
- Earth's Tidal Bulge
- Spring & Neap Tides
Tidal Effects in the Earth-Moon System:
- Tidal Locking of the Moon
- Tidal Braking slowing the Earth's Rotation
- Lunar Recession (increasing size of the Moon's orbit)
Ocean Tides are a familiar phenomenon to those who make their homes
near the sea:
- Sea level is highest twice a day at "high tide"
- Sea level is lowest twice a day at "low tide"
People near the sea quickly notice that the timing of the tides
was governed by the motions of the Moon:
This folk intuition is correct: Tides are in fact caused primarily
by the gravitational pull of the Moon.
- The time between successive high tides is 12h 25m
- The time between successive moonrises is 24h 50m, or
twice the time between high tides
The gravitational force exerted by the Moon on the near and far sides of
the Earth is different:
This causes a net front-to-back differential gravitational force felt by
- The Moon is 12740 km closer to the near side of the Earth than the
- This results in a 7% stronger gravitational force on the near side
compared to the far side
- Stretches the Earth along the Moon-Earth line
- Squeezes the Earth at right angles to this line
[Click on the image to view full size (6.1k GIF)]
The net result is 2 tidal bulges on opposite sides of the Earth, and so
2 tides per day as the Earth rotates through the Earth-Moon line.
Land and Sea Tides
How big is the Tidal Bulge of the Earth?
The main body of the Earth is made of rock, which is stiff and
resists deformation by tides.
- "Body Tides" on Earth are only about 30 centimeters high.
The oceans are made of water which is fluid and flows easily
in response to the tidal forces:
- Ocean Tides on Earth are about 1 meter high in the open sea
- Near the shore, tidal flows and the seafloor shape can
work together to produce much larger local tide
[Click on the image to view full size (16k GIF)]
Some of the most extreme ocean tides on Earth are observed in Canada's
Bay of Fundy between Nova Scotia
and New Brunswick. Here the shape of the bay leads to average high tides of
12 meters compared to low tide, with maximum high tides of up to 17 to
Gravity is a universal force, so tides are raised between any two bodies.
The Sun also raises tides on the Earth:
The Sun and Moon work together to give different kinds of tides and
different times of a Lunar Month.
- The difference between the gravity force on the day and night sides
of the Earth are about half that due to the Moon.

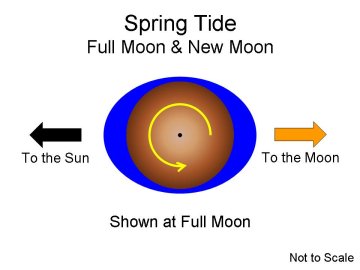

- The highest High Tides
- Occur during New Moon and Full Moon, when the Moon and Sun
are lined up with the Earth.

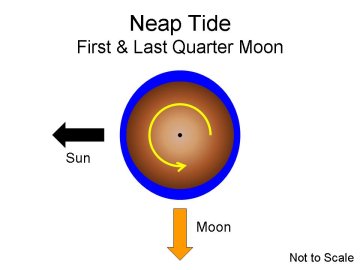

- The lowest High Tides
- Occur at First Quarter and Last Quarter phase,
when the Moon and Sun are at right angles seen from Earth.
Tidal Locking of the Moon
Similarly, the Earth raises tides on the Moon
The early Moon rotated much faster:
- The Earth is more massive, and the Moon's radius is smaller.
- Earth tides are ~20x stronger than Moon tides.
The end result is that the Moon got Tidally Locked in
- This means it was rotating through its tidal bulge.
- This generated tremendous internal friction, slowing
the Moon's rotation.
- Eventually, the Moon's rotation slowed until it matched
its orbital period, and the friction stopped.
This is why the Moon always keeps the same face towards the Earth,
as we saw back in Lecture 8.
Because the rotation and orbit periods are the same, we say that the
Moon is locked in a 1:1 Tidal Resonance with the Earth.
Tidal Braking of the Earth
The Earth rotates faster than the Moon orbits the Earth (24 hours compared
to 27 days).

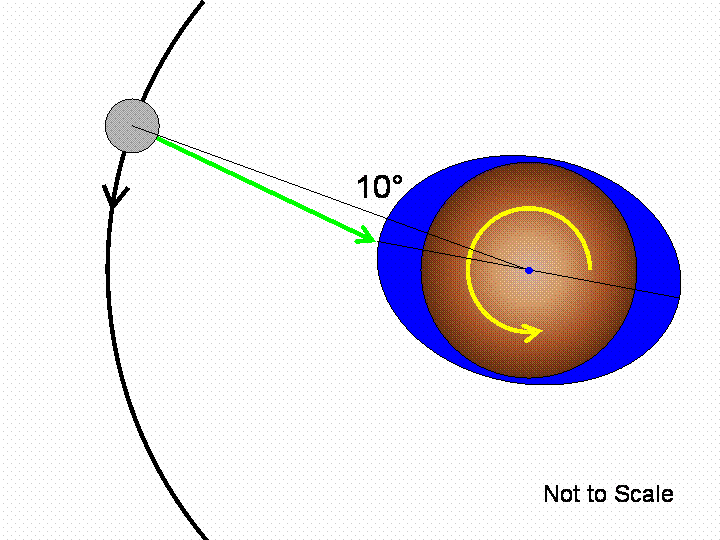

There is therefore friction between the ocean and the seabed as the Earth
turns out from underneath the ocean tidal bulges.
- This drags the ocean bulge in the eastward direction of the Earth's
- Result is that ocean tides lead the Moon by about 10-degrees
[Click on the image to view full size (18k GIF)]
The friction from the ocean tides robs the Earth of rotational energy,
acting like brake pads.
This effect is known as Tidal Braking
- Slows the Earth's rotation a tiny amount.
- The Day is getting gradually longer by 0.0023 seconds per century.
Another effect of the Tidal Braking is that the extra mass in the ocean
bulges leading the Moon causes a small net forward tug.
- Results in a net forward acceleration of the Moon
- Moves the Moon into a slightly larger orbit
This effect is known as Lunar Recession
- Steady increase in the average Earth-Moon distance by about 3.8 cm
The Lunar Recession rate is measurable using Laser Ranging experiments
that use retroreflector arrays left on the Moon by the Apollo missions
(Apollo 11, 14, and 15), and two Soviet landers (Lunakhod 1 and 2).
Telescopes on Earth bounce laser beams off the reflector arrays and measure
the distance to the Moon to millimeter precision.
The Once and Future Moon
Lunar Recession and Tidal Braking of the Earth's rotation are coupled: the
rotational energy being taken from the Earth in braking is effectively
being transferred, via tides, to the Moon. This extra energy lifts it
into a higher orbit.
As a result:
After a many Billions of years, this could potentially add up until:
- The Day gets longer by about 1.7 milliseconds every
100 years [20.3]
- The Moon recedes by about 3.84 meters/century.
The Earth & Moon would then be locked together in a 1:1
Tidal Resonance, and always keep the same face towards each other.
- The Moon will be ~50% farther away from the Earth
- The Lunar Sidereal Month will be about 47 days long
- The Earth's rotation period (the day) will be 47 days long
Once the Earth and Moon are tidally locked, further tidal evolution
should stop. However, remember that the Earth and Moon orbit the Sun,
and so tidal effects from the Sun will come into play, and continue to
evolve the Earth-Moon system dynamically. The details are quite
complicated, and beyond the scope of this course (and, to be fair, even
the experts argue among themselves about the details - it is a difficult
Tidal phenomena are extremely important throughout the Solar System.
In the remainder of the class, we will often encounter examples of tides
playing a role in the dynamics of planets and their moons.
Tides are essential to understanding the dynamical evolution of the
- Tidal Resonances determining rotation periods (Moon & Mercury)
- Tidal Locking (Pluto & Charon system)
- Tidally-induced Heating (Io around Jupiter, and Triton around Neptune)
