An Introduction to Solar System Astronomy
Prof. Richard Pogge, MTWThF 9:30
Lecture 20: Tides
Tides are caused by differences in the gravitational pulls of the Moon
and Sun between near and far sides of the Earth.
- Earth's Tidal Bulge
- Spring & Neap Tides
- Tidal Locking of the Moon
- Tidal Braking slowing the Earth's Rotation
- Lunar Recession (increasing size of the Moon's orbit)
Ocean Tides are a familiar phenomenon to those who make their homes
near the sea:
- Sea level is highest twice a day at "high tide"
- Sea level is lowest twice a day at "low tide"
People near the sea quickly notice that the timing of the tides
was governed by the motions of the Moon:
This folk intuition is correct: Tides are in fact caused primarily
by the gravitational pull of the Moon.
- The time between successive high tides is 12h 25m
- The time between successive moonrises is 24h 50m, or
twice the time between high tides
The gravitational force exerted by the Moon on the near and far sides of
the Earth is different:
This causes a net front-to-back differential gravitational force felt by
- The Moon is 12740 km closer to the near side of the Earth than the
- This results in a 7% stronger gravitational force on the near side
compared to the far side
- Stretches the Earth along the Moon-Earth line
- Squeezes the Earth at right angles to this line
[Click on the image to view full size (6.1k GIF)]
The net result is 2 tidal bulges on opposite sides of the Earth, and so
2 tides per day as the Earth rotates through the Earth-Moon line.
Land and Sea Tides
How big is the Tidal Bulge of the Earth?
The main body of the Earth is made of rock, which is stiff and
resists deformation by tides.
- "Body Tides" on Earth are only about 30 centimeters high.
The oceans are made of water which is fluid and flows easily
in response to the tidal forces:
- Ocean Tides on Earth are about 1 meter high in the open sea
- Near the shore, tidal flows and the seafloor shape can
work together to produce much larger local tide
[Click on the image to view full size (16k GIF)]
The most extreme ocean tides are experienced in Canada's Bay of Fundy
between Nova Scotia and New Brunswick, where the shape of the bay leads
to average high tides of 12 meters compared to low tide, and maximum
high tides of up to 17 to 18 meters!
[A nice discussion of
the Bay of Fundy tides by Canadian astronomer Roy Bishop.]
Gravity is a universal force, so tides are raised between any two bodies.
The Sun also raises tides on the Earth:
The Sun and Moon work together to give different kinds of tides and
different times of a Lunar Month.
- The difference between the gravity force on the day and night sides
of the Earth are about half that due to the Moon.
The highest High Tides are the Spring Tides:
- Occur when the Moon and Sun are lined up at New and Full Moon
The lowest High Tides are the Neap Tides:
- Occur when the Moon and Sun are at right angles during First
and Last Quarter Moon.
[Click on the image to view full size (16k GIF)]
Tidal Locking of the Moon
Similarly, the Earth raises tides on the Moon
If the Moon were rotating faster than its orbit, the constant stretching
and squeezing of the Moon by Earth tides would have generated heat.
- The Earth is much bigger, so the Earth tides on the Moon are larger
The end result is that the Moon is Tidally Locked to the Earth.
- This heat would take energy away from the Moon's rotation.
- The Moon would slow down until its rotation and orbital periods
were the same, stopping the squeezing.
This is why the Moon always keeps the same face towards the Earth,
as we saw back in Lecture 8.
Because the rotation and orbit periods are the same, we say that the
Moon is locked in a 1:1 Tidal Resonance with the Earth.
Tidal Braking of the Earth
The Earth rotates faster than the Moon orbits the Earth (24 hours compared
to 27 days).

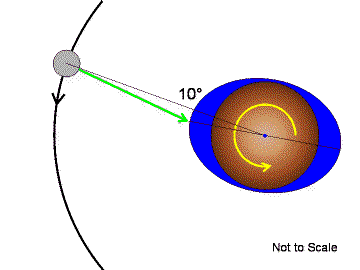

There is therefore friction between the ocean and the seabed as the Earth
turns out from underneath the ocean tidal bulges.
- This drags the ocean bulge in the eastward direction of the Earth's
- Result is that ocean tides lead the Moon by about 10-degrees
[Click on the image to view full size (18k GIF)]
The friction from the ocean tides robs the Earth of rotational energy,
acting like brake pads.
This effect is known as Tidal Braking
- Slows the Earth's rotation a tiny amount.
- The Day is getting gradually longer by 0.0023 seconds per century.
Another effect of the Tidal Braking is that the extra mass in the ocean
bulges leading the Moon causes a small net forward tug.
- Results in a net forward acceleration of the Moon
- Moves the Moon into a slightly larger orbit
This effect is known as Lunar Recession
- Steady increase in the average Earth-Moon distance by about 3.8 cm
The Lunar Recession rate is measurable using Laser Ranging experiments
that use retroreflector arrays left on the Moon by the Apollo missions
(Apollo 11, 14, and 15), and two Soviet landers (Lunakhod 1 and 2).
Telescopes on Earth bounce laser beams off the reflector arrays and measure
the distance to the Moon to millimeter precision.
The Once and Future Moon
Lunar Recession and Tidal Braking of the Earth's rotation are coupled: the
rotational energy being taken from the Earth in braking is effectively
being transferred, via tides, to the Moon. This extra energy lifts it
into a higher orbit.
As a result:
After a few Billion Years, this adds up until:
- The Day gets longer by about 2.3 milliseconds every 100 years
- The Moon recedes by about 3.84 meters/century.
The Earth & Moon will be locked together in a 1:1 Tidal Resonance,
and always keep the same face towards each other.
- The Moon will be ~50% farther away from the Earth
- The Lunar Sidereal Month will be about 47 days long
- The Earth's rotation period (the day) will be 47 days long
Tidal phenomena are extremely important throughout the Solar System.
In the remainder of the class, we will often encounter examples of tides
playing a role in the dynamics of planets and their moons.
Tides are essential to understanding the dynamical evolution of the
- Tidal Resonances determining rotation periods (Moon & Mercury)
- Tidal Locking (Pluto & Charon system)
- Tidally-induced Heating (Io around Jupiter, and Triton around Neptune)
